BARREL COUPLINGS FOR CRANES

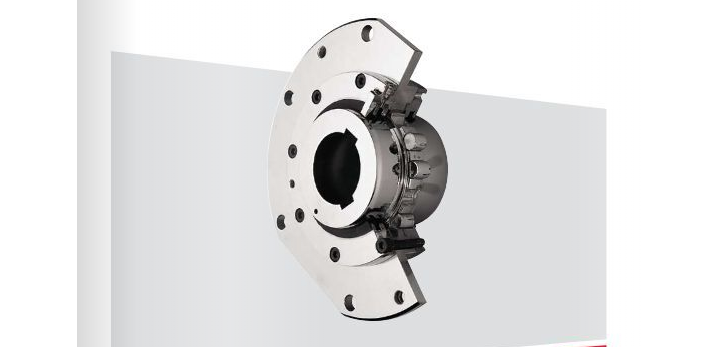

The barrel coupling is basically made up by a sleeve-flange with semicircular internal teeth, a hub having external teeth with the same shape and a series of hardened steel rollers which are housed between both parts. The internal transmission area is made tight by mounting a cover at each side with their corresponding retainers, preventing, in this way, any foreign substances from getting in as well as preventing the lubricant from leaking. Two retainer rings mounted on the hub, one at each side of the teeth, limit the axial displacement of the barrel rollers inside their housing. To this regard there are 2 different constructive models. Basic models, named as NT..., in which retainer rings are directly in contact with the barrels and new generation models, named NTSG..., in which extra thrust rings are installed in between the barrels and retainer rings.

The Torque is transmitted to the receiving flange of the drum, usually, through two diametrically opposed flat carrier faces which can be found at the periphery of the coupling flange. The friction effect of the attachment screws of both flanges also takes part in this transmission. Other systems, as adjusted bolts or similar, can also be used preparing the flanges accordingly.

we can supply barrel coupling with size 2.5 MM to 620 MM

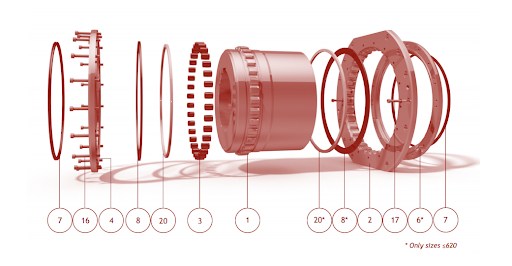

  1. Hub
  2. Sleeve-flange
  3. Barrel
  4. External cover
  5. Pointer
  6. Internal cover
  7. Joint
  8. Retainer ring
  9. Carrier face
  10. Wear control marks
  11. Axial adjustment mark
  12. Pair numbers and assembly points
  13. Lubricant filler
  14. Lubricant overflow hole
  15. Flange pulling hole
  16. External fixing screw
  17. Internal fixing screw
  18. Hub pulling hole
  19. Cover pulling hole
  20. Thrust ring (only for models NTSG...)
  21. Lubricant adaptor (only on request)
