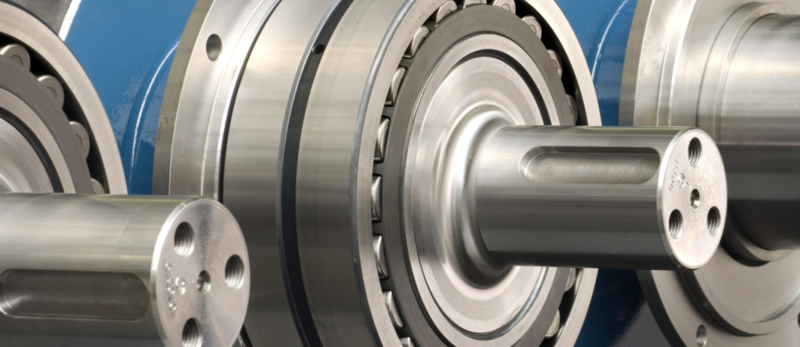

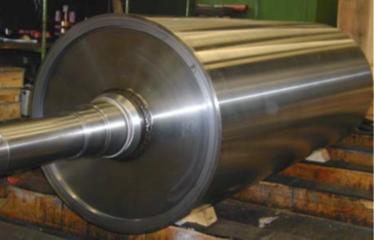

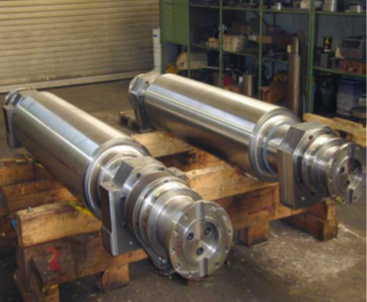

Down coiler pinch rolls

We supply pinch rolls with patented material (Electroslag Strip cladding)

Roller Shell : S355J2G3 (Mat-N° 1.0570)
Axle : 42CrMo4+QT(Mat-N° 1.7225)

Roller barrel hardfaced with GW|PREMCO-ES-LCr (Premium electroslag overlay coating) by strips according to DIN 8555-6 with a low chromium contents around 6 %.

High deposition rate
High productivity
Low dilution to base metal (up to 7% only)
Large liquid pool
Low penetration depth
Ideal overlapping zones
No buffer layers necessary
Required chemistry from 1st layer
Homogeneous microstructure
Homogeneous hardness
process reliability
