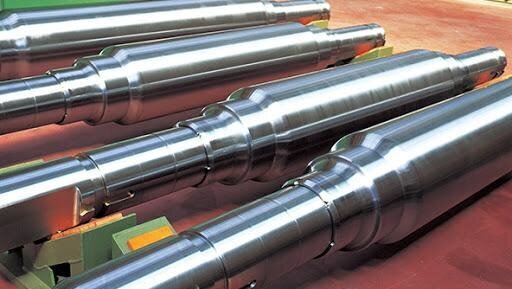

FORGED WORK ROLLS AND BACK UP ROLLS

This market segment covers forged Work Rolls and Intermediate Rolls for use in Wide Cold Strip Mills of 2-high, 4-high, or 6-high types, including reversing Reduction Mills, Tandem Mills, Double Reduction Mills, and Temper/Skin Pass Mills etc.

Our Rolls can be supplied in a number of grades to suit various applications, materials, and rolling conditions. Both electric steel and ESR quality rolls are available.

With our extensive knowledge and experience of manufacturing forged work rolls, we can assist clients in selecting the grades and parameters that will assure optimal performance in their mill operations.

  1. Volume Hardened – SENDZIMIR Rolls
  2. Surface Hardened Rolls- for ferrous and non-ferrous mills
    3. Volume Hardened – SENDZIMIR Rolls
    • We provide all sorts of work, intermediate and back rolls as well as all kinds of driving rolls. Work rolls are made from various high-speed steels (powder metallurgy, conventional (HSS), ledeburite and tool steels.
    • The ability to offer premium grade roll which is efficient and value addition to your existing process of D2 rolls– SENDZIMIR Mills. The same is cost competitive as compared AISI M2 grade rolls and better life span due to better toughness etc.- application – SENDZIMIR Mills.
      Dimensional Range:
    1. Diameter – (20 to 350) mm
    2. Length - Up to 3000 mm
    3. Weight- Up to 2500 kg
    Surface Hardened Rolls

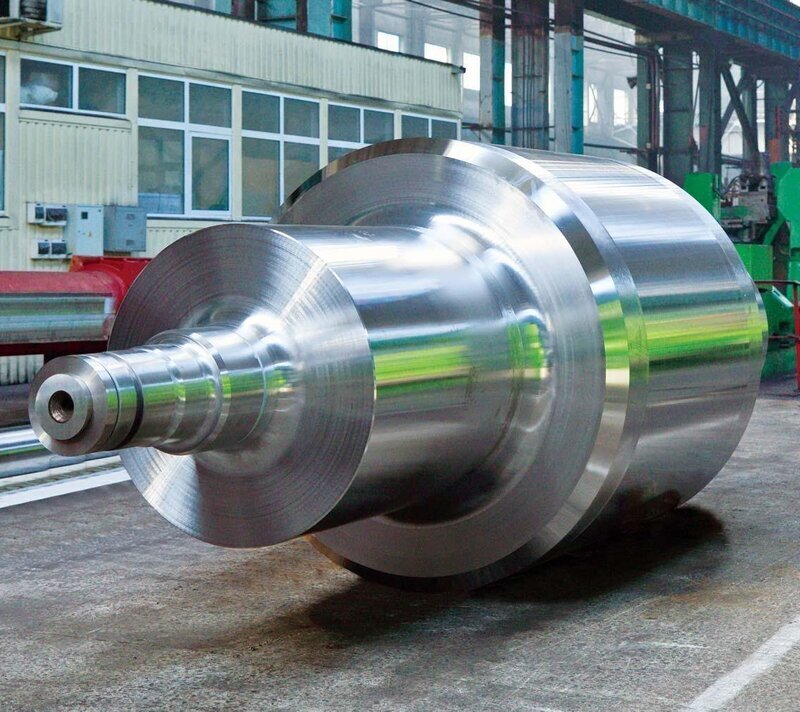

    Forged steel Back Up rolls (ESR / Non ESR)

    we can supply you with a comprehensive range of forged steel Back-up Rolls. Our long experience, coupled with state-of-the-art manufacturing equipment and processes, makes our Back-up Rolls a consistent top performer Our Back-up Rolls can be supplied in various grades to meet different hardness and wear resistance requirements.

    • Roll Material : Material: 3% Cr & 5% Cr
    • Max diameter: Ø2300 mm
    • Max weight: 255 T
    Forged-steel Work and Intermediate rolls (ESR / Non ESR)
    • Max diameter: Ø1400 mm,
    • Max weight: 50 T,
    Forged Rolls for ferrous cold rolling mills
    • 9Cr2Mo \ MC3 \ MC4 \ MC5
    • High-alloy rolls (tool steel with 5% or 8% chromium content) for cold rolling applications
    • DURAWEAR Rolls - next generation of through hardened rolls (Advantages: Extremely high wear resistance, Lower grind offs, better tonnage in cycle, Resistance to local overheating, Extended surface roughness retention, Outstanding resistance to mill incidents. and Extended campaign length
    Forged Rolls for Aluminium Industry / Non-ferrous rolling
    • Forged rolls for hot and cold rolling mills
    • Forged rolls for foil mills
    • Shells for continuous strip casting
    • Roll Cores for continuous casting of Aluminium
